Frameless Shower Screens

Frameless Shower Screen Layouts: Wall to Wall, Corner and 3 Panel

A frameless shower screen layout depends on how many walls surround your shower. A wall to wall screen closes a recess between two walls. A corner screen adds a fixed return panel on the open side. A 3 panel slider splits a long recess and puts the entry in the middle.

For framed, semi frameless and bath screens as well, see all shower screens.

Sliding or Pivot Door Frameless Shower Screens

A sliding door frameless shower screen needs no swing space, so it suits a bathroom where a vanity, toilet or towel rail sits close to the shower. A pivot door gives a wider way in for the same width, but it needs clear floor where the door swings.

• Pivot doors in this range open inwards or outwards, which helps when an outward swing would hit a vanity.
• Covey sliding doors run on rollers along a #304 stainless steel top rail, close against a soft-close stop, and can be set to open to the left or the right.
• The walk-in gap on a Covey slider runs from about 420mm on the 870 to 890mm size to about 878mm on the 1800 to 2000mm size. On a 3 panel slider it is roughly 600 to 800mm.
• To compare frames and glass across the whole range, browse all sliding shower screens or pivot and hinged shower screens.

Which Frameless Shower Screen Fits Your Bathroom?

• If a vanity or toilet sits within a door's swing of the shower, choose a sliding door.
• If you have clear floor in front and want the widest way in, choose a pivot door.
• If your recess is wider than 2000mm, choose a 3 panel slider so you step in through the middle.
• If your recess is 1200 to 1400mm and you want a pivot door, choose the matte black wall to wall pivot screen, the only pivot model here that reaches 1400mm.

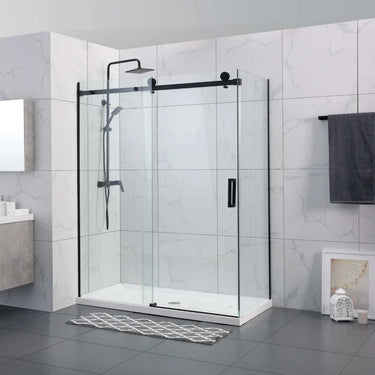

• If your shower is open on one side, choose a corner screen and pick the return panel size separately.
• If you want one fixed panel and no door, choose a walk-in shower screen instead.

Frameless vs Semi Frameless Shower Screens

A frameless shower screen uses 10mm glass with no frame around the panels, while our semi frameless screens use 6mm glass in a slim aluminium frame. Frameless gives the cleaner look and a more solid feel. Semi frameless costs less. Both take up walls that are slightly out of plumb through adjustable wall channels.

Frameless has trade-offs. The glass costs more, it cannot be cut on site, and sliding models have a bottom guide to wipe now and then so the door keeps running smoothly. If the budget matters more than the look, see semi frameless shower screens.

How to Measure for a Frameless Shower Screen

A frameless shower screen is measured at the top, middle and bottom of the opening. Use the smallest figure and order the size range that contains it. The glass is heat-treated after cutting, so it cannot be cut, drilled or notched once it is made.

1. Wall to wall: measure between the two walls at three heights.
2. Corner: measure the door side from the wall to the outside edge of the shower base, then the return side. The door and the return panel are chosen separately, so a 900 x 1000mm corner works as well as 900 x 900mm.
3. Out-of-plumb walls: on Covey screens, the standard 18mm wall channel takes up to 10mm. An optional 45mm wide channel takes up to 20mm and reaches about 25mm further.
4. Just above a size range: order the smaller Covey size with the 45mm wide channel. The glass overlaps less and the walk-in gap is wider than on the next size up.
5. 3 panel screens from 1400 to 2000mm: these are made to measure, so send your top, middle and bottom figures before you order.

Not sure your opening will fit? Call our renovation expert team on 0480 746 325 with your measurements, or ask how to measure at home, and we will check that the screen you want can be installed.

Frameless Shower Screen Finishes

Frameless shower screen hardware here comes in seven finishes: chrome, matte black, brushed nickel, brushed gold, brushed gun metal, brushed brass and brushed bronze. Not every layout carries every finish, so check this table before you settle on a colour.

• Brushed bronze is a copper tone, and brushed brass is a darker gold than brushed gold.
• Chrome matches the chrome tapware already in most bathrooms.
• Matte black draws a clear line along the rail and handle, and pairs with black tapware.

Installing a Frameless Shower Screen

A frameless shower screen must be installed by a licensed, qualified glazier, as the listings in this range state. Across Sydney metro, our frameless shower screen installation starts from $429, and the actual amount is the one shown at checkout. A 3 panel screen is quoted for each job.

• Removing and taking away an old screen is quoted separately.
• The shower base, tray, drain and tapware are not included.
• Covey glass is certified to AS 1288 and AS/NZS 2208. BH listings state the screens are manufactured to comply with Australian Standards.
• Most Covey product pages include an installation manual for your glazier.
• The warranty is listed on each product page.

Frameless Shower Screens in Sydney: Pickup, Delivery and Installation

Every frameless shower screen in this range can be collected free in Sydney, with no appointment needed. Free metro delivery applies in Sydney on orders over $2,000, and we install across Sydney metro. Shower screens cannot be viewed in person, so compare finishes in the product photos and call our renovation expert team on 0480 746 325 to check a size before you order.

• Brisbane: Covey screens, more than half of this range, can be collected free in Rocklea (QLD), with local delivery across Brisbane metro.
• Melbourne, Perth and other areas: freight is calculated from your postcode at checkout.
• Glass is checked before dispatch. Please inspect it on delivery before signing.

The RJ Bathroom team in Sydney wrote this guide from the product listings in this collection. If a listing and this guide ever differ, the listing is correct, and you can call us to check before you order.
