Timber Look Camden 900x360mm Ensuite Slimline Vanity Coastal Oak Wall Hung Ceramic or Stone Top

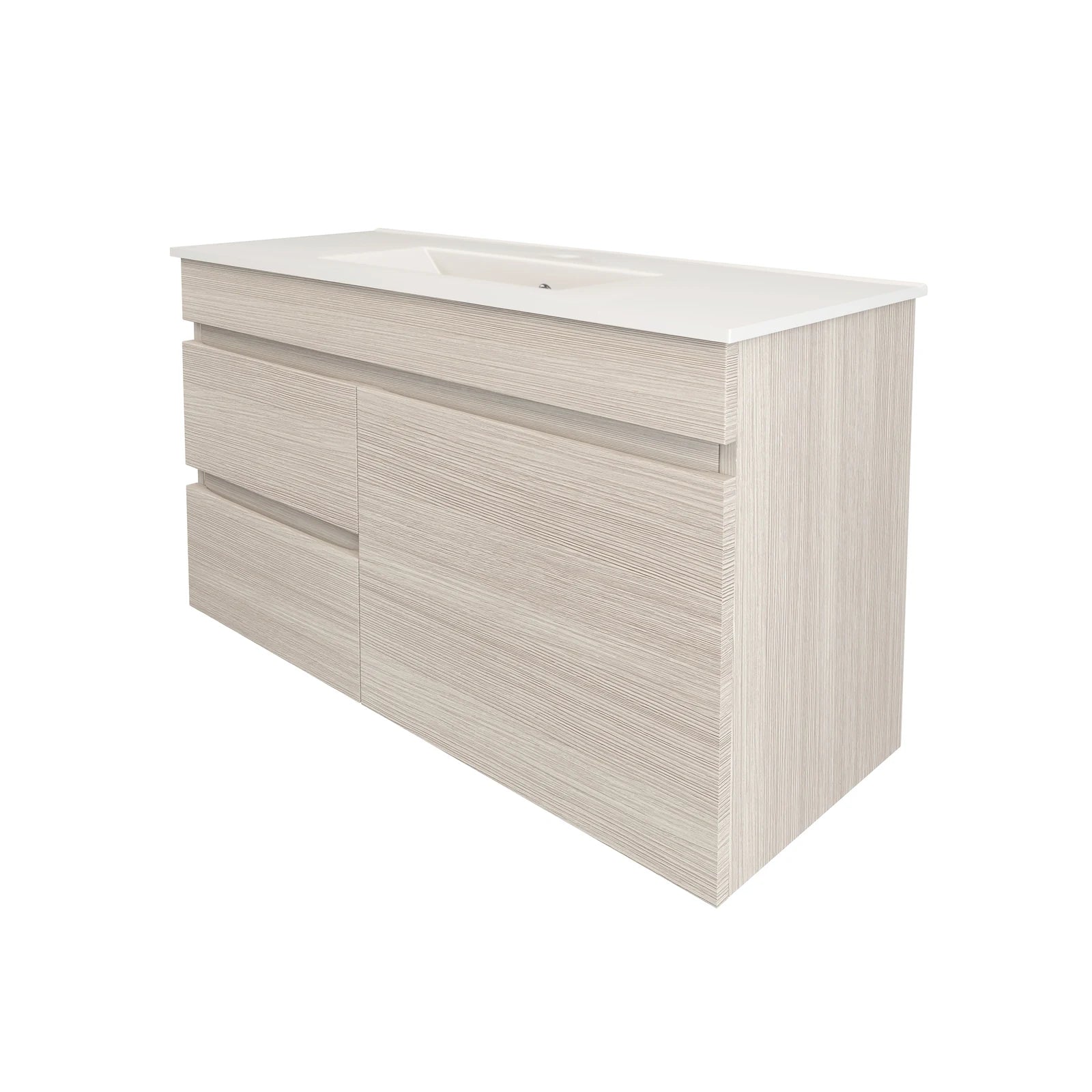

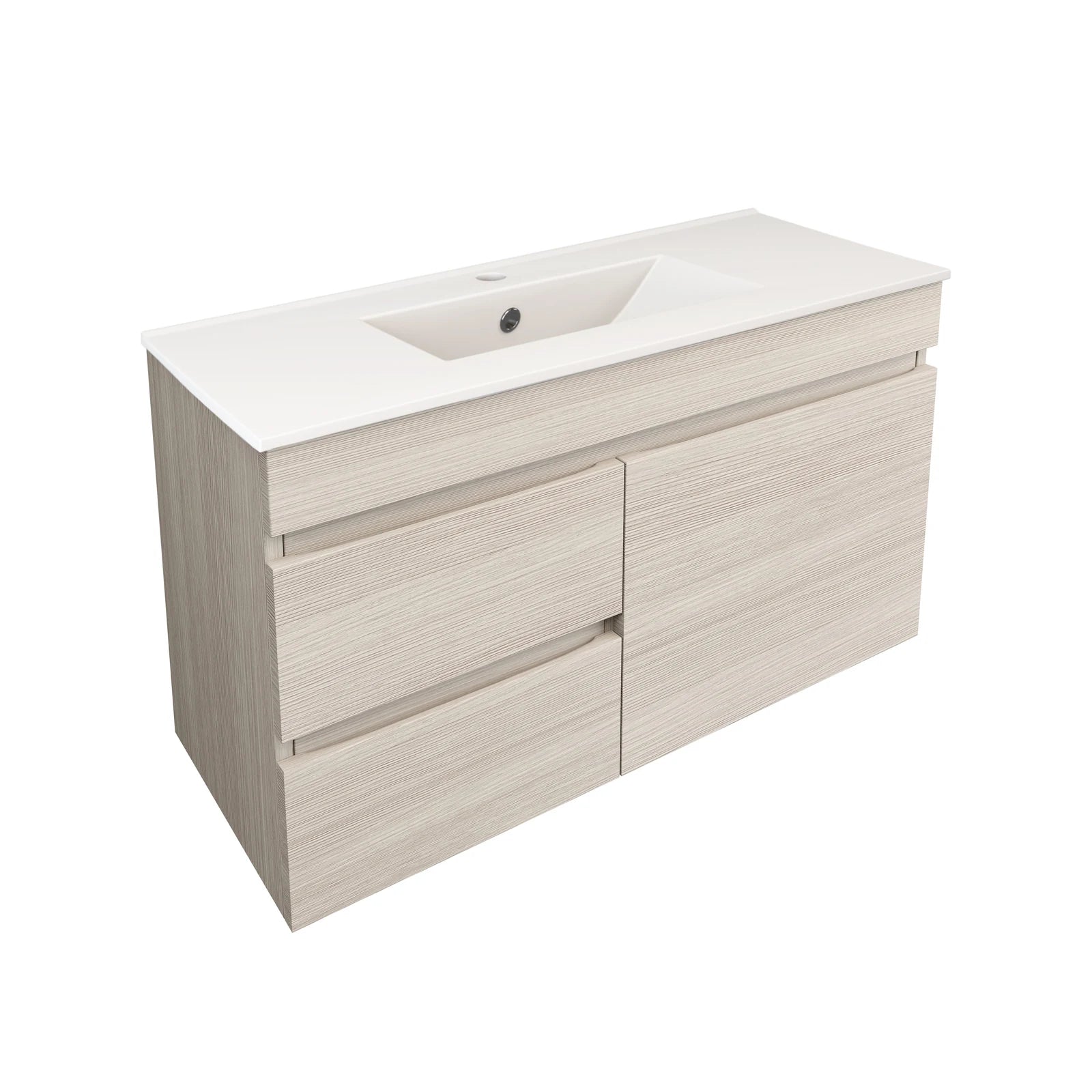

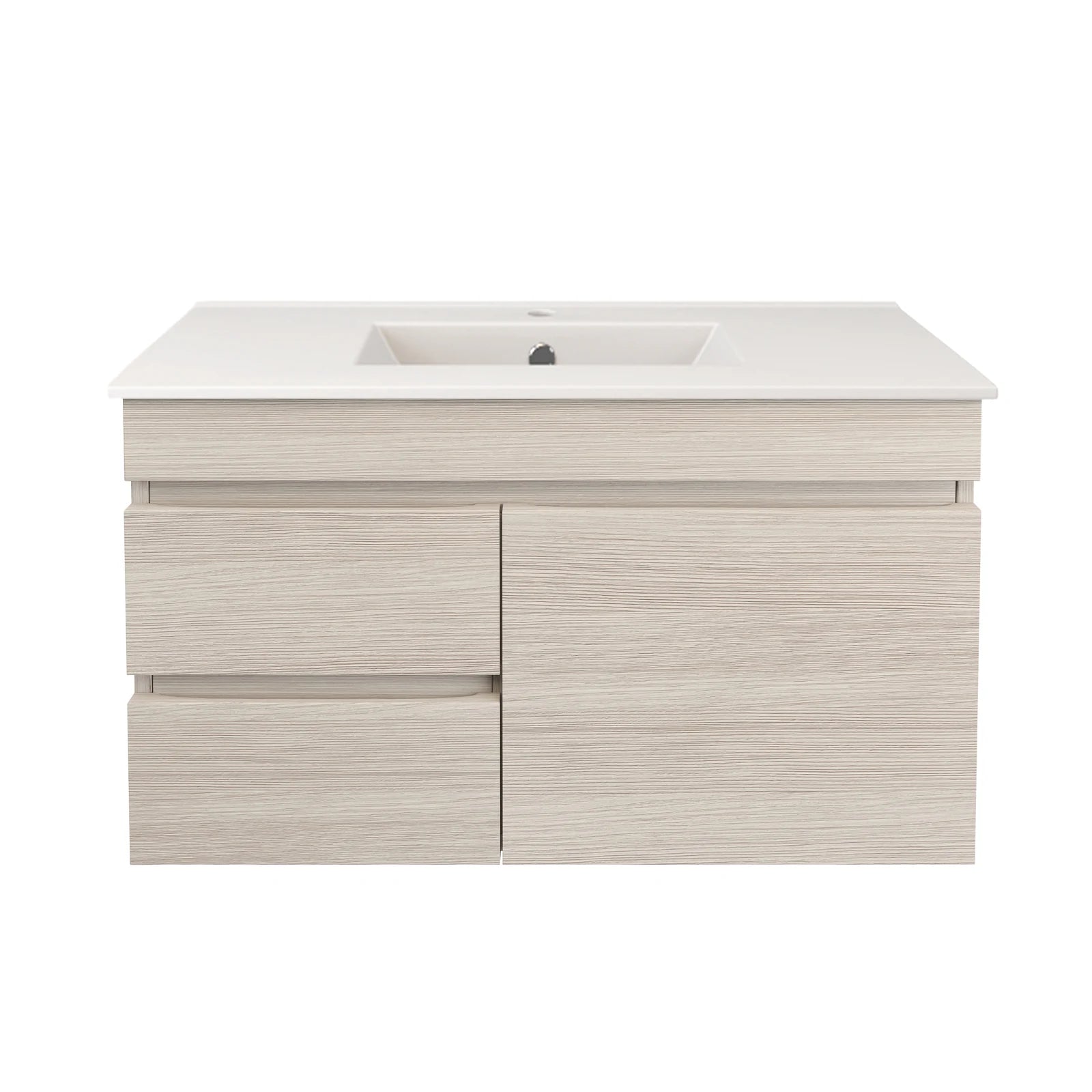

The Timber Look Camden 900x360mm Ensuite Slimline Wall Hung Vanity in Coastal Oak is a wall-mounted bathroom vanity with two soft-close drawers beside a full-height door, supplied as a cabinet only — the ceramic or stone top and basin are chosen separately.

At 360mm deep it is built for the rooms a standard vanity does not fit: ensuites, powder rooms, second bathrooms and narrow renovations. The carcass is E0-grade MDF wrapped in a thermoformed wood-grain PVC film, edges included, with soft-close hardware throughout and a recessed finger pull instead of handles. A 390mm drawer stack sits beside a 498mm full-height door bay. Cabinet body 900mm wide x 360mm deep x 500mm high, hung clear of the floor.

Coastal Oak at 900mm — Wide Bench, Narrow Footprint

A 900mm vanity in a 360mm deep body is an unusual combination. Most 900mm cabinets are 460–500mm deep because they are designed for main bathrooms; putting that in an ensuite or a narrow family bathroom leaves a walkway you have to turn sideways in. The Camden 900 gives you the full 890mm of bench length while keeping roughly 100mm more clear floor than a standard-depth unit of the same width.

Coastal Oak is the finish that keeps that width from taking over. At 900mm you are looking at nearly a metre of continuous cabinet face; in a dark timber that becomes the only thing you see when you walk in. The pale sun-bleached grain spreads the same area out and lets the tiling, the mirror and the tapware share the room. It is the reason this combination works in ensuites that are wide but shallow — a long wall with not much depth in front of it.

Wall hanging a 900mm cabinet has a second benefit beyond looks: no legs to level. A 900mm floor-standing unit will rock on a floor graded toward a floor waste unless every foot is dialled in individually. Fixed to the wall, the cabinet is dead level regardless of what the tiler did with the fall.

Key Features of the Camden Coastal Oak 900mm Wall Hung Vanity

• 2 soft-close drawers + 1 full-height door: Daily items in the drawers, full internal height and plumbing clearance behind the door.
• 360mm slimline cabinet depth: A full 900mm of bench length while keeping roughly 100mm more walkway than a standard-depth vanity.
• Wall hung, floor left clear: Mop straight underneath, no kickboard line collecting dust, and the tiled floor reads as continuous — the single biggest visual gain in a small room.
• Handleless finger pull: A flush front with nothing protruding to catch a towel or a dressing gown in a narrow space.
• Coastal Oak wood-grain PVC film: Thermoformed over E0-grade MDF and wrapped around every edge, so there is no exposed board and the surface wipes clean.
• Cabinet only: Match it to an integrated ceramic top or a Pure White stone top with an above-counter basin — you are not paying for a top you did not choose.

Ceramic and Stone Top Options for the Camden 900mm Wall Hung Vanity

• Integrated ceramic top (915 x 365 x 165mm): A one-piece slim-edge ceramic top and basin sized to the 360mm depth — a 185mm deep bowl with moulded ledges either side and no silicone joint to discolour. Single 35mm tap hole, 45mm waste. See the dimension drawing in the gallery.
• Zero silica stone top with above-counter basin: A 20mm engineered stone top in Pure White — the only stone colour offered on the Camden range — meeting Australian zero-silica requirements, with a vessel basin sitting proud of the surface.
• Basin and tapware limits on a 360mm top: An above-counter basin must be 300mm deep or less. That leaves roughly 60mm of surface behind the bowl — not enough for a 12 o’clock tap hole — so specify wall-mounted tapware, or have the tap hole drilled at the 10 o’clock or 2 o’clock position.

Matching Camden Pencil Edge Shaving Cabinet in Coastal Oak

The Camden Pencil Edge shaving cabinet is finished in the same Coastal Oak wood-grain PVC film from the same range, so the two match rather than nearly match — worth knowing, because timber-look finishes from different series almost never do. At only 150mm deep it does not crowd the space over a slimline vanity, and it carries a silver-coated copper-free mirror with adjustable glass shelves behind it. The 900mm Camden shaving cabinet in Coastal Oak lines up with this vanity; the next size up is also worth considering if you want the mirror to read wider than the cabinet below it.

Camden 900mm Slimline Wall Hung Vanity Specifications

Camden 900mm Wall Hung Vanity — Frequently Asked Questions

Q: What does the wall need to hold a wall hung vanity?
A: A wall hung cabinet transfers its whole load plus the top, the basin and the water in it into the wall, so it has to fix into structure — timber noggins between the studs, or the appropriate fixing for a masonry or steel-framed wall. In a new build or a full renovation that is set at framing stage, which is why it pays to decide on a wall hung vanity before the wall is sheeted. On an existing wall your installer will need to locate or add noggins at the right height. Confirm the fixing method with your licensed installer — installation by a licensed tradesperson is a warranty condition.

Q: How high should I hang it?
A: The cabinet body is 500mm high, and the finished top surface is what you actually set. Most Australian installers land the finished top somewhere between 800mm and 900mm off the floor, which puts the underside of a Camden roughly 250–350mm clear of the tiles. Lower is more comfortable for children, higher gives you more visible floor and an easier mop-through. Set the height with your installer before the wall is fixed off — it is not adjustable afterwards.

Q: Should I order the drawers on the left or the right?
A: Order them opposite your waste outlet. The bottle trap runs down inside the full-height door bay, so if the drain sits on the left of the cabinet you want the drawers on the right — and the reverse if the drain is on the right. Order it the wrong way round and the trap lands behind the drawer boxes, which means cutting them out or losing them. Find out where your waste comes out of the wall or floor first; it is a two-minute check that decides which option you pick.

Q: How much fits in the drawers?

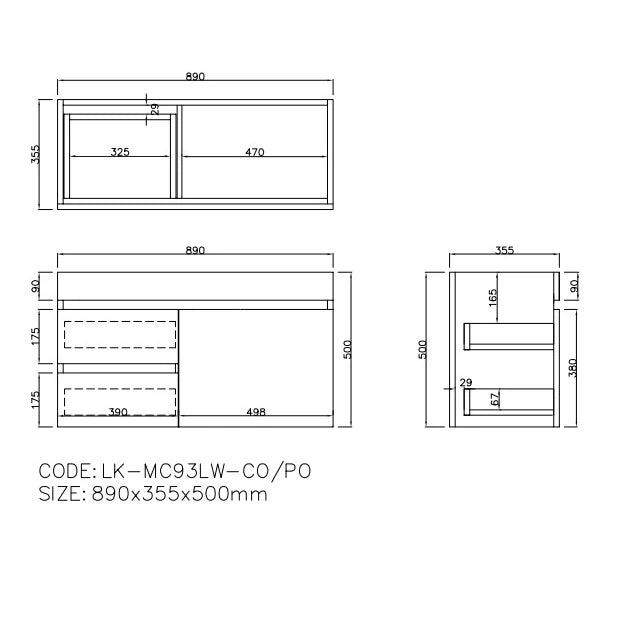

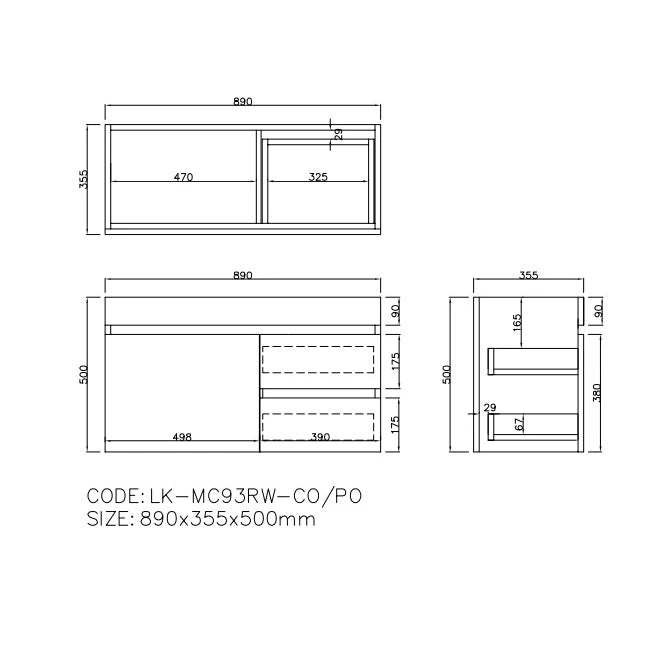

A: They are shallow by design — a 360mm deep cabinet cannot carry a deep drawer box, and the internal depth is noticeably less than the cabinet depth. They are wide enough for the everyday run of brushes, razors, skincare and cosmetics, and shallow drawers are far easier to keep tidy than deep ones. The exact internal dimensions are on the dimension drawing in the image gallery — check it against what you plan to store before you order.

Q: Why can’t I put the tap behind the basin?
A: Because the top is only 360mm deep. Once a 300mm deep above-counter basin is on it, roughly 60mm of surface is left at the back — not enough to mount a mixer and still get the spout over the bowl. The two workable answers are wall-mounted tapware, or a tap hole drilled at 10 o’clock or 2 o’clock so the mixer sits beside the basin rather than behind it. An integrated ceramic top avoids the question entirely.

Q: What stone colours can I choose?
A: Pure White only. There is no Carrara or veined marble-look stone in the Camden range. Against the pale, low-contrast Coastal Oak grain, Pure White keeps the unit to a single timber pattern rather than introducing a second one.

Q: Will the MDF swell in a humid bathroom?
A: The carcass is fully wrapped in thermoformed PVC film with no exposed edges, so ambient steam has nothing to soak into. What actually damages bathroom cabinetry is standing water — a weeping trap, or water tracking off a shower screen. Keep the cabinet wiped dry, ventilate the room, and note that water damage sits outside the warranty. This is a moisture-resistant cabinet, not a waterproof one.

Q: Can you deliver a 900mm vanity to Perth or regional WA?
A: Yes. Perth is a free-shipping metro zone on orders over $3,200 — the highest threshold we run, because Western Australia is the longest freight leg from our Sydney warehouse. Mandurah, Bunbury, Busselton, Geraldton, Albany and Kalgoorlie are calculated at checkout by weight and postcode. Because a 900mm cabinet is the heaviest in the Camden wall hung range, WA customers should get their checkout quote before finalising the rest of the order — adding a lighter item like a shaving cabinet to the same order is usually far cheaper than shipping it separately later. Free warehouse pickup is available in Sydney.
