Aquaperla Lucid Pin Chrome Shower Wall Mixer with Diverter - Separate Plates, In-Wall Body Included

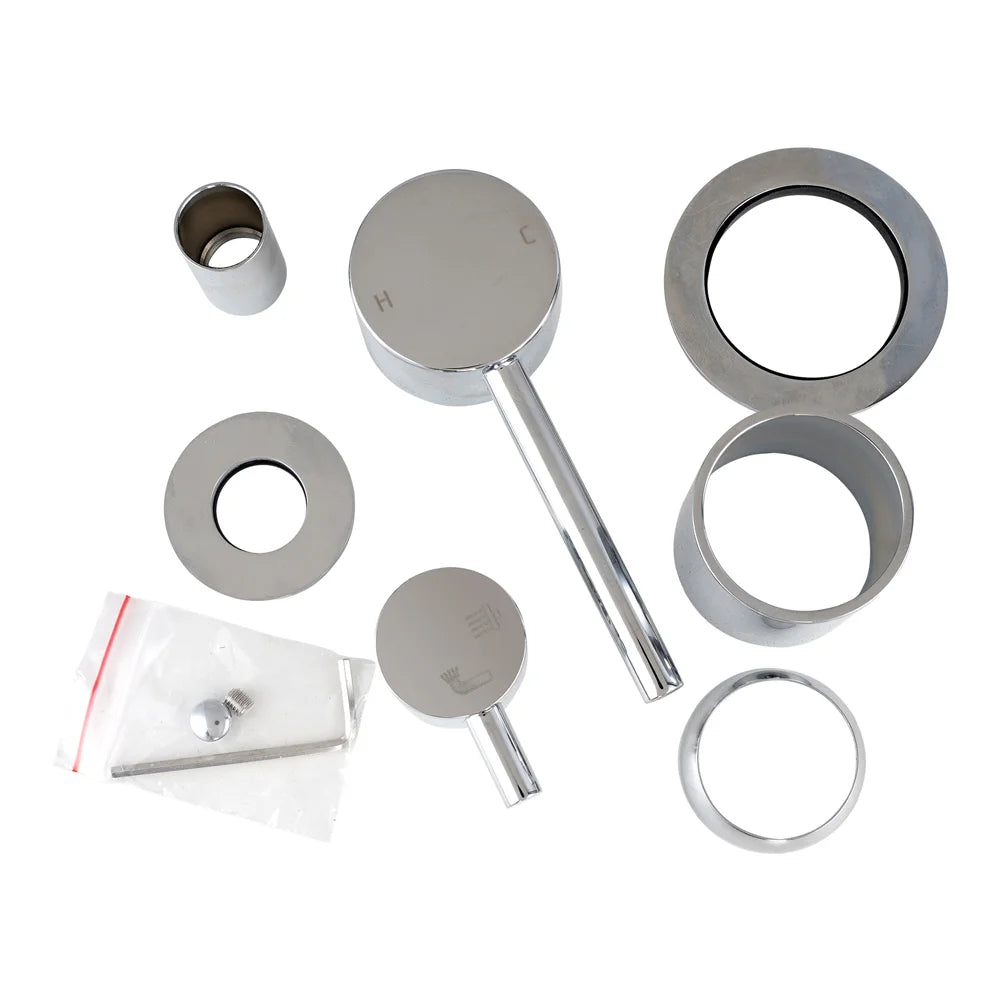

Complete set - trim kit and in-wall diverter body (CLPD) included.

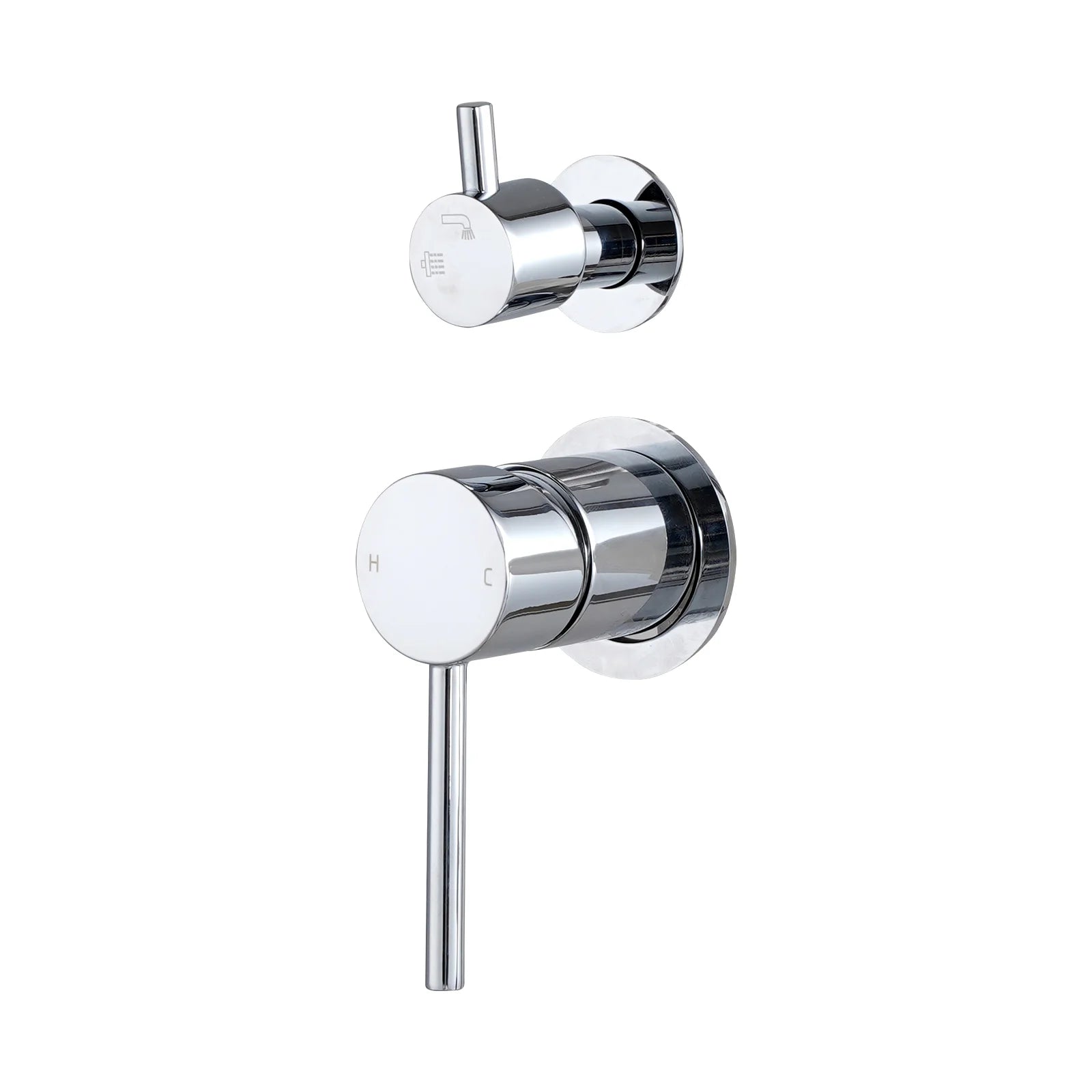

The Aquaperla Lucid Pin Chrome Shower Wall Mixer with Diverter (separate plates) is a pin lever diverter mixer with the mixer and the diverter knob on two separate small round plates, for showers with two outlets and shower-over-bath installations.

Polished chrome matches almost any shower rose, rail or towel ring already in the room, and water spots on the plate wipe off with a damp cloth.

Two Small Plates Instead of One Large One

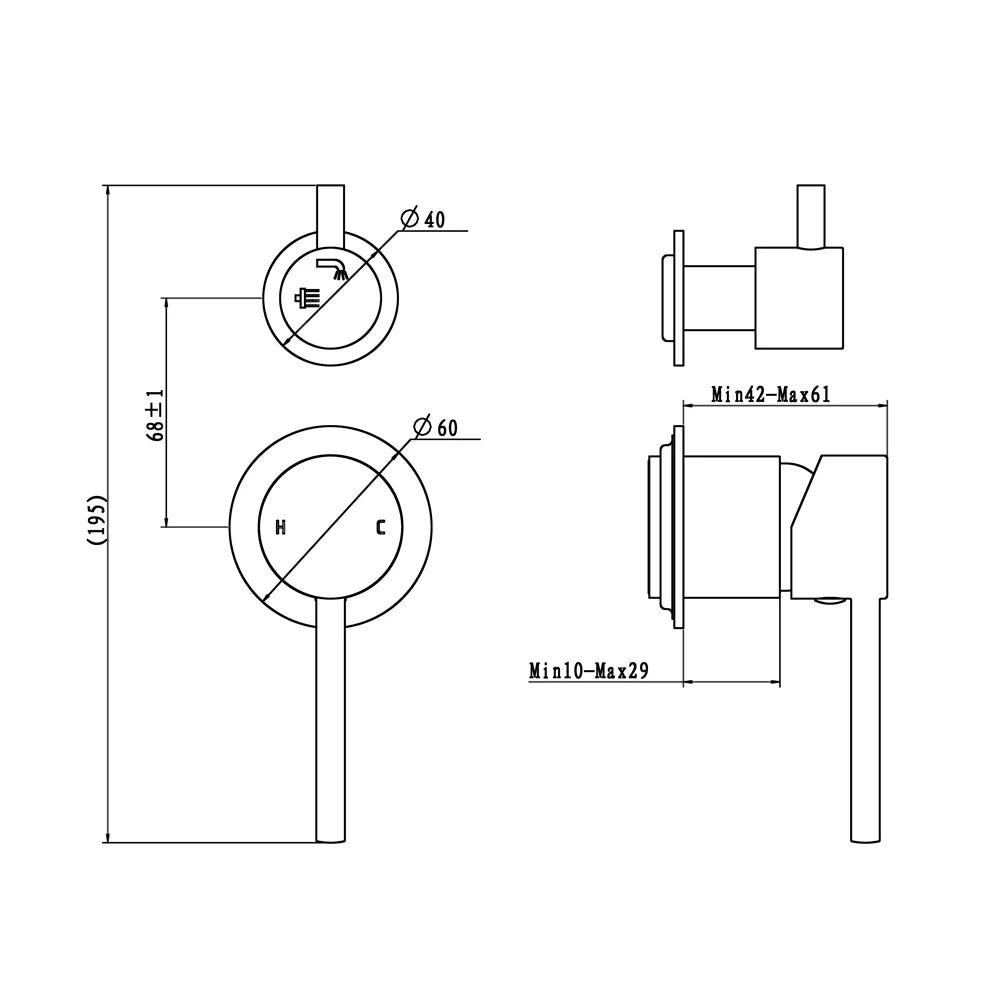

Instead of one large cover plate, this Lucid Pin version gives the mixer a 60mm round plate and the diverter knob its own 40mm plate, set 68mm apart. The two small rounds suit feature tiles, fluted tiles and narrow niches where a large plate would cover the pattern. The lever projects 42-61mm from the finished wall, depending on wall depth. It is sold as a complete set with the CLPD in-wall diverter body.

Key Features of the Lucid Pin Chrome Diverter Mixer

• 60mm round mixer plate and 40mm round diverter plate
• Separate round diverter knob, 68mm above the lever
• Lever projects 42-61mm, depending on wall depth
• SEDAL ceramic disc cartridge
• CLPD in-wall diverter body included
• Chrome finish
• Australian standard
• 15 years replacement parts warranty

Aquaperla Lucid Pin Diverter Mixer Specifications

Care & Normal Wear

Wipe the mixer dry after showering. No tapware finish is unaffected by prolonged contact with hard water, soap build-up or harsh cleaners, and damage caused by abrasive or solvent-based products sits outside the warranty.

Frequently Asked Questions About the Aquaperla Lucid Pin Diverter Mixer

What does the diverter on the Lucid Pin Chrome mixer do?
The lever sets the flow and temperature, and the diverter sends the water to one of two outlets - usually an overhead shower and a hand shower, or a shower and a bath spout. The shower head, hand shower, rail or bath spout are sold separately.

Is the in-wall body included?
Yes. This listing is the complete set: the Lucid Pin trim kit plus the CLPD in-wall diverter body. The body is installed in the wall cavity before tiling, and the trim is fitted after the tiles are finished.

Do I need a plumber to install it?
Yes. In Australia tapware must be installed by a licensed plumber. A diverter mixer is best installed during a renovation or new build, while the wall is open, so the body and both outlet lines can be set at the correct depth before tiling.

How do I keep the finish looking right?
Wipe the mixer dry after use and clean it with warm water and a soft cloth. Avoid abrasive creams, scourers and harsh chemical cleaners - these attack the surface, and damage caused by the wrong cleaning method is not covered by the warranty.

Do you deliver the Lucid Pin Chrome diverter mixer to my state?
Yes. Free shipping Australia-wide on all tapware, to every state and territory - Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, and to regional addresses as well. There is no remote-area surcharge on tapware.
